USD6.00 - USD8.00 / pieces
- Type:Electric Water Heater Parts
- Place of Origin:CN;JIA
- Brand Name:YULING
- Model Number:YL-RSQ01

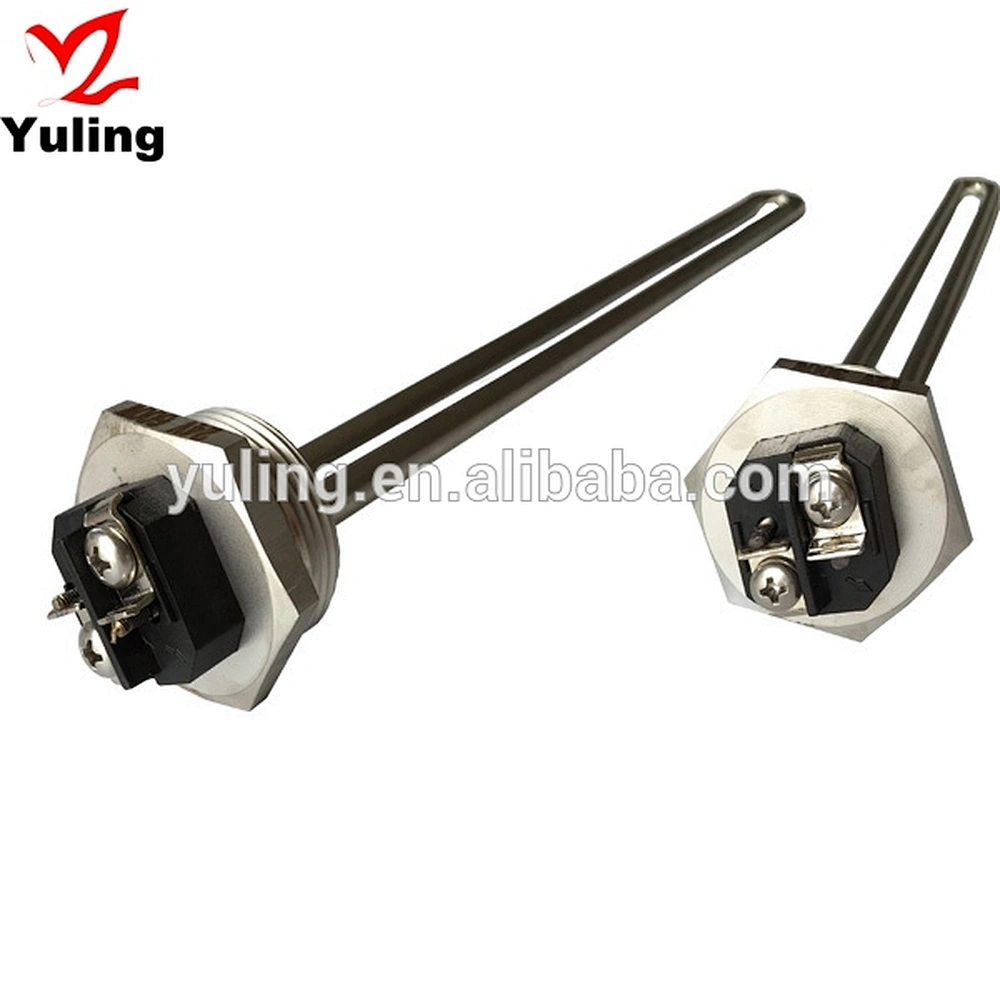

12v dc electric water heater
| Specification parameter | Detail | Remark |
| Sheath Material | SUS304 | Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested |
| Voltage/Wattage | 12V/200W | Voltage/Wattage /Tolerance can be customized as required,and Wattage tolerance(cold condition):+5%-10%. We also can produce 12V/200W,12V/300W,12V/400W,24V/600W... |
| Tube Diameter | 8.5mm | Tube diameter can be changed to 6.5mm,7mm,8.0mm,8.5mm,10.0mm or others as requested |
| MgO | A Grade | We can use other powder if requested |
| Resistance Wire | Ni80Cr20 | OCr25Al5 or other material if requested |
| Terminal | SUS304 | Materials of terminal housing could be stainless iron,stainless steel if required |
| Leads | SUS304 | Materials of terminal piece could be stainless iron,stainless steel if required |
| Screw thread | 1" | Other thread can be made if required |
| HME-SM | Nylon | This material highest heat resistance 160 ℃ |
| Weight | 205g | |
| Density | 2.02w/cm2 | |
| Power Source | Battery-powered | or Solar Panel |
| Shape | U | or as requested |
| Warranty | 2-5years | As requested |
| Usage | DC water heating, Diverting excess battery power, Water preheating, livestock |
DC Water Heating Elements Are Much Safer Than AC!
BUT:
Please Don't Use Grid Power As It Will Immediately Destroy The Elements!!
→
FAQS
1, Customer: You are factory or Trading company?
Answer: We are factory! Here is our factory address: Qintong Industrial Area, Jiangyan District, Taizhou City, Jiangsu Province.
2, Customer: What is the delivery date of the samples?
Answer: Within 5 days(usual).
3, Customer: Which certificates you have?
Answer: We have CE, RoHS, CQC and ISO9001:2008.
4, Customer: How do you inspect the elements before package?
Answer: We always 100%QC before packing.
5, Customer: Do you support non-standard custom-made?
Answer: Of course.
6, Customer: Which items you are inspection?
Answer: 1, External dimension. 2, Insulation Puncture Test (2000V 1amp). 3, Insulation resistance test (1000V).
7, Customer: Your elements sold to which countries?
Answer: Our products active in the market of Germany, Australia, Switzerland, England, Cyprus, Canada, Brazil, Singapore, Korea, Russia, France, Nigeria, Janpan... Our products always got the praise from customers, whether price or quality.
8, Customer: If we find the elements has quality problems I mean If, how will you dispose?
Answer: The frist, our factory has ISO9001:2008 quality control certificate and we has been implemented, so it is slim chance. But, if you find any elements has quality problems please tell me, then we will 100% compensation the rejects with next order!
9,If there are any other questions about the heating elements, please feel free to contact me!
When inquire 12v dc electric water heater, please kindly specify:
We custom design various heating elements as your demands. Please kindly advise your specifications.
1, Tube/Flange(Materials, Sizes)
2, Wattage and voltage
3, Working environment and temperature
4, Type of terminal
5, Drawing of special type configuration
6, Special testing requirements before shipment
7, We like to got any questions of heating elements from your side. We will try our best to do for you.
....
