$4.00 - $6.00 / pieces
- After-sales Service Provided:Free spare parts
- Warranty:2 years, 2-3years
- Type:WASHING MACHINE PARTS
- Application:Household
- Power Source:Electric
- Place of Origin:Jiangsu, China
- Brand Name:YULING
- Model Number:YL-XYJ123
- Usage:Washing Machines
- Material:SUS304
- Voltage/Power:230v/2050w
- Diameter:8.0mm
- Power Tolerance:+5% / -10%
- Leakage Current:≤0.5mA
- Certificates:CE, RoHS, CQC, ISO9001:2008

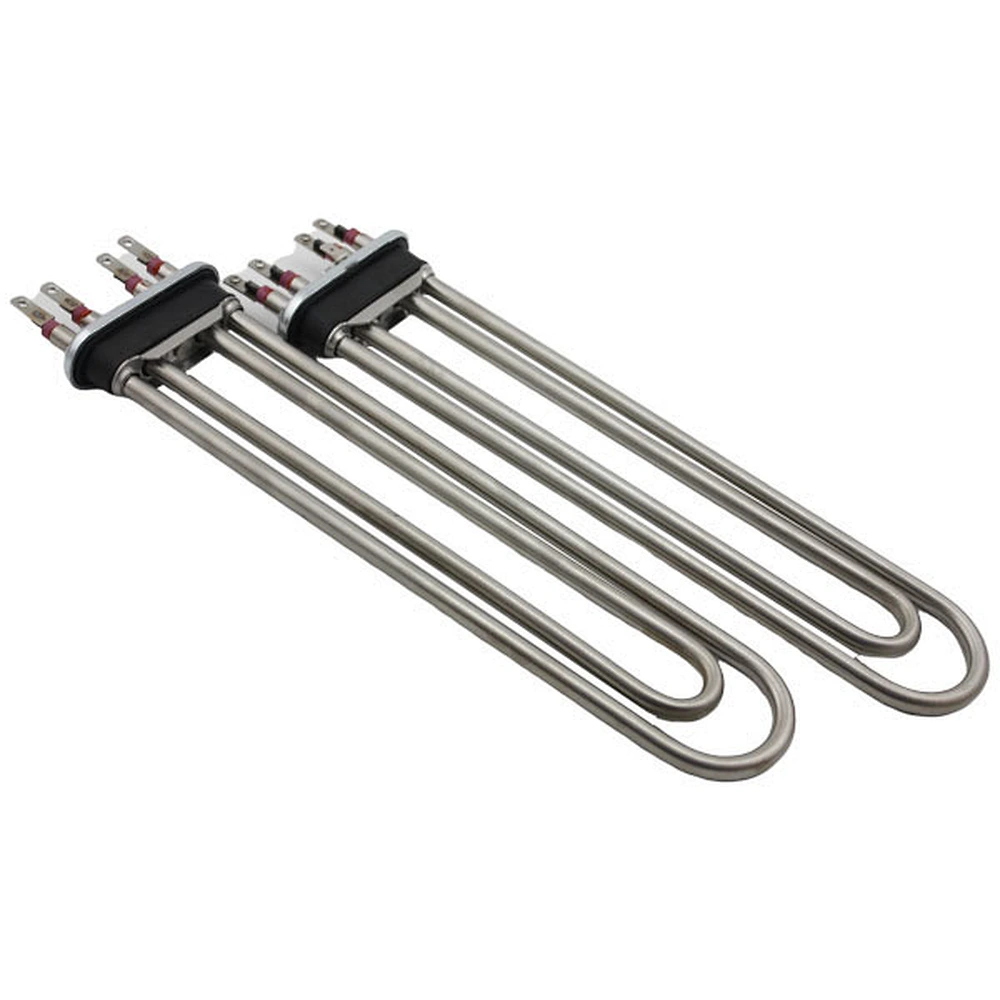

Tubular Washing Machine Heating Element
| Specification parameter | Detail | Remark |
| Tube/Fin Materials | SS304 | Materials can be changed to be ss321,ss316L,incoloy804,incoloy800 as requested |
| Voltage/Wattage | 230V/2050W | Voltage/Wattage /Tolerance can be customized as required,and Wattage tolerance(cold condition):+5%-10%. |
| Tube Diameter | 8.5mm | |
| MgO | A Grade | We can use other powder if requested |
| Resistance Wire | Ni80Cr20 | or OCr25Al5 |
| Terminal | SUS304 | Materials of terminal housing could be stainless iron,stainless steel if required |
| Leads | SUS304 | Materials of terminal piece could be stainless iron,stainless steel if required |
| Weight | 0.35kg | |
| Power Source | AC | |
| Shape | M | or as requested |
| Warranty | 2-3years | As requested |
| Usage | Washing machine |
Where Are The Tubular Washing Machine Heating Element Use For?
How To Install The Tubular Washing Machine Heating Element?
The frist, please cut off the power supply!!

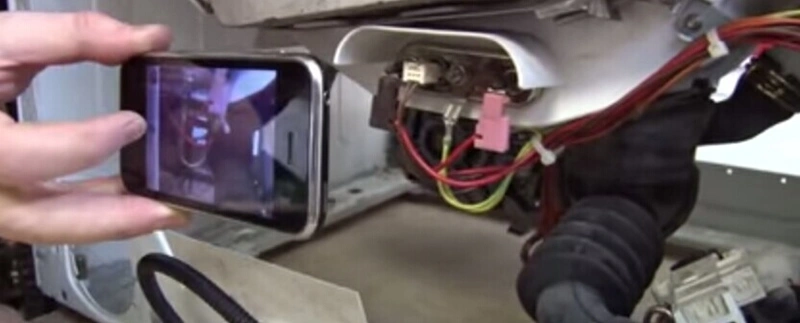

Then open the shell and take a photo, record the wiring position.
↓

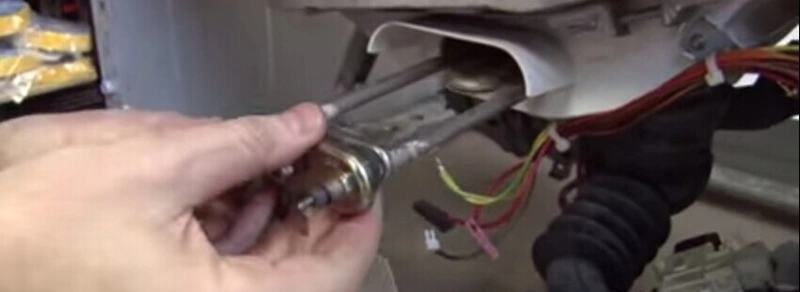

Replace the washing machine heating element.
FAQS.
1,Customer:You are factory or Trading company?
Yuling:We are factory! Here is our factory address: Qintong Industrial Area, Jiangyan District, Taizhou City, Jiangsu Province.
2,Customer: How do you inspect the elements before package?
Yuling:We always 100% QC before package.
3, Customer: Which items you are inspection?
Yuling:1, External dimension. 2, Insulation Puncture Test (2000V 1amp). 3, Insulation resistance test (1000V).
4, Customer: Your elements sold to which countries?
Yuling:Our products active in the market of Germany, Australia, Switzerland, England, Cyprus, Canada, Brazil, Singapore, Korea, Russia, France, Nigeria, Janpan... Our products always got the praise from customers, whether price or quality.
5, Customer: If we find the elements has quality problems, I mean If, how will you do?
Yuling:The frist, our factory has ISO9001:2008 quality control certificate and we has been implemented. So, if you find any elements has quality problems please tell me, then we will 100% compensation with next order!
...
