$3.50 - $6.00 / pieces
- After-sales Service Provided:Free spare parts
- Warranty:3 years, 1-5 years
- Type:WASHING MACHINE PARTS
- Application:Hotel
- Power Source:Electric
- Place of Origin:Jiangsu, China
- Brand Name:Yuling
- Model Number:YL-XYJ072
- product name:Incoly electric tubular washing machine heating elements for Haier
- Certification:CE, ISO, ROHS, CQC
- Business type:heater element manufacturer
- Voltage/watt:240V/2000w
- total Length:180mm
- tube Diameter:8.5mm
- Leakage current:<0.5mA
- QC:100% QC before shipment
- Samples:1 pcs sample for free

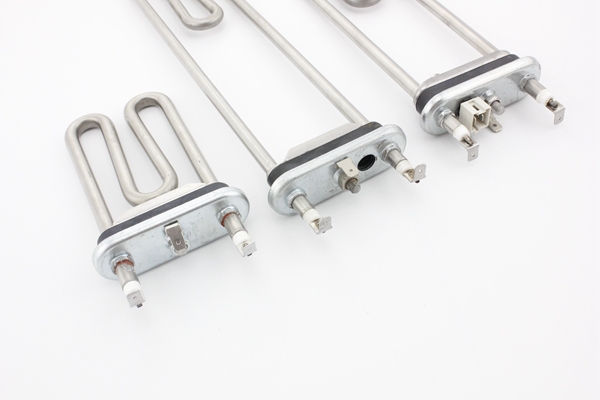

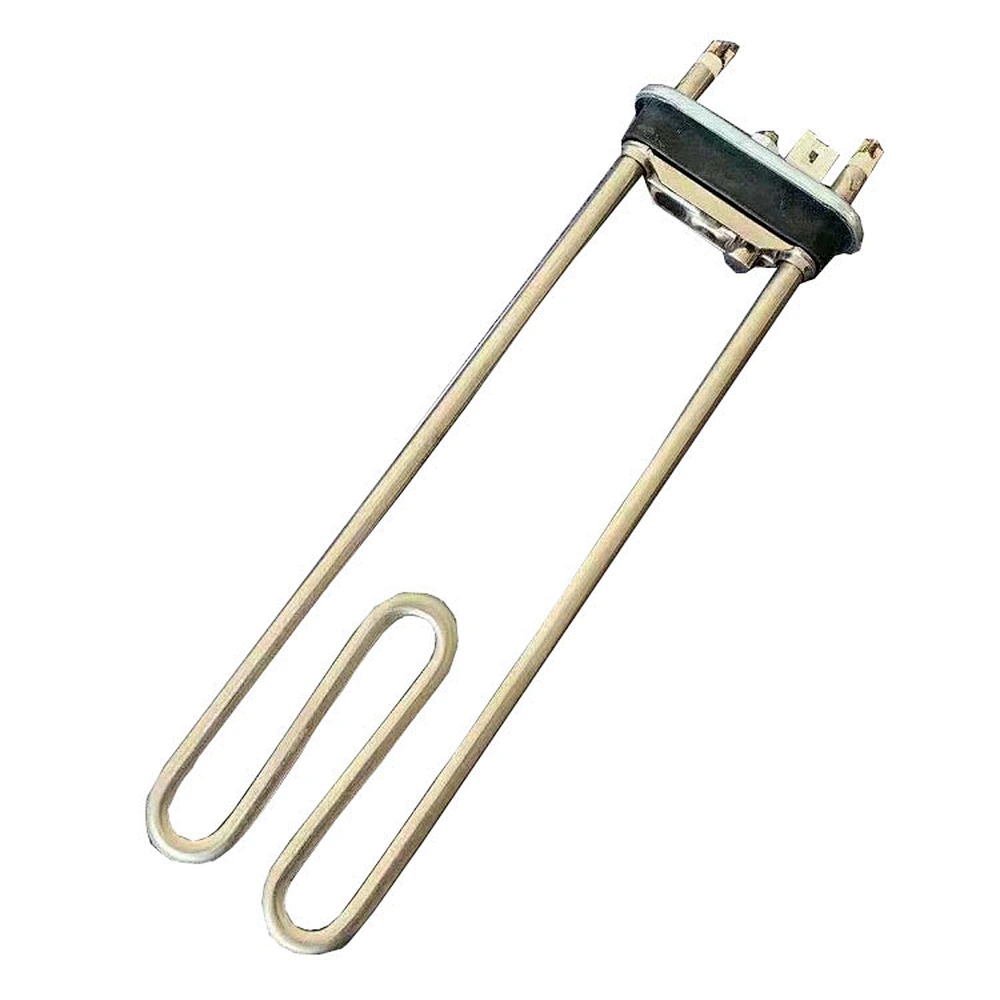

Incoloy electric tubular washing machine heating elements for Haier
Specification parameter | Detail | Remark |
| Sheath Material | incoloy | Materials can be changed to be sus321,sus316L,incoloy804,incoloy800 as requested. |
| Voltage/Wattage | 240V/2000W | Voltage/Wattage /Tolerance can be customized as required,and Wattage tolerance(cold condition):+5%-10%. |
| Tube Diameter | 8.5mm | |
| MgO | A Grade | We can use other powder if requested |
| Resistance Wire | OCr25Al5 | or Ni80Cr20 |
| Terminal | SUS304 | Materials of terminal housing could be stainless iron,stainless steel if required |
| Ground lug | yes | |
| Porcelain column | white | or as requested,surface is smooth, glaze (porcelain) |
| Blade terminal | single terminal | single,double or as requested |
| Weight | 228g | depend on finally diemension |
| Thermostat | yes | or as requested |
| Power Source | electrical | or as requested |

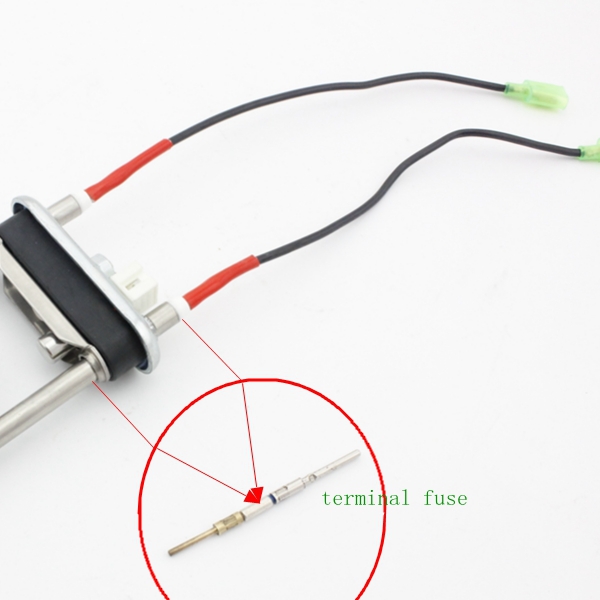

| Built-in fuse | 2 | 1,2 or as requested |
| Warranty | 1-5years | |
| Usage | Platen washing machine | |
Thermal protection
When inquire Incoloy electric tubular washing machine heating elements for Haier ,please kindly specify:
We custom design various heating elements as your demands. Please kindly advise your specifications.
1, Material, diameter, length
2, Wattage and voltage
3, Working environment and temperature
4, Type of terminal
5, Drawing of special type configuration
6, Special testing requirements before shipment
7, We like to got any questions of heating elements from your side. We will try our best to do for you.

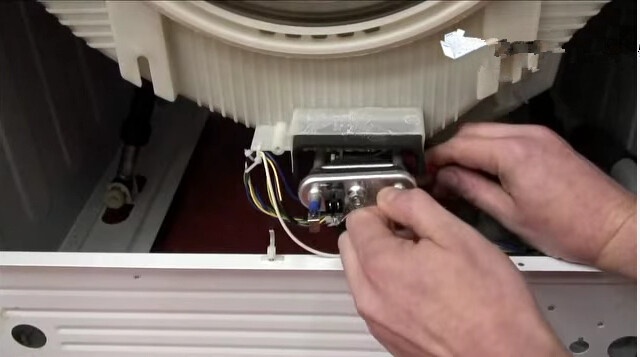

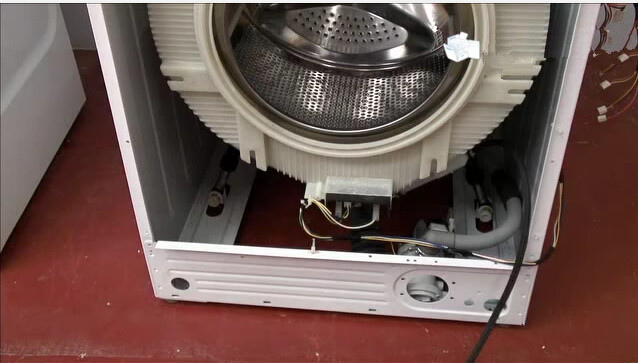

How to install ?
Why choose us?
1 Our factory has more than 40 years' experiences of produce many kinds of heating elements;
2 We are a factory of Alibaba Assessed 3 years' Gold Supplier;
3 ISO listed, 100% QC inspection Before Shippment;
4 CE, CQC, RoHS listed!
5 Our products active in the market of Germany, Australia, Switzerland, England, Cyprus, Canada, Brazil, Russia, France, Nigeria... Our products always got the praise from customers, whether price or quality.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:where is your factory location?
A:Qintong industrial area jiangyan District,Taizhou City,Jiangsu Province,three hours drive from shanghai.
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:Are your products customized?
A:Yes,the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements or drawings.
...
