3/8" x 3 1/4" 240V 300W Cartridge heater with fin electric finned heating tube igniter heater
price
US $3.99 - US $5.99 / pieces
3-20-04876
10 pieces
5000pieces / Month
Taizhou,Jiangsu,China
20Day
Quantity

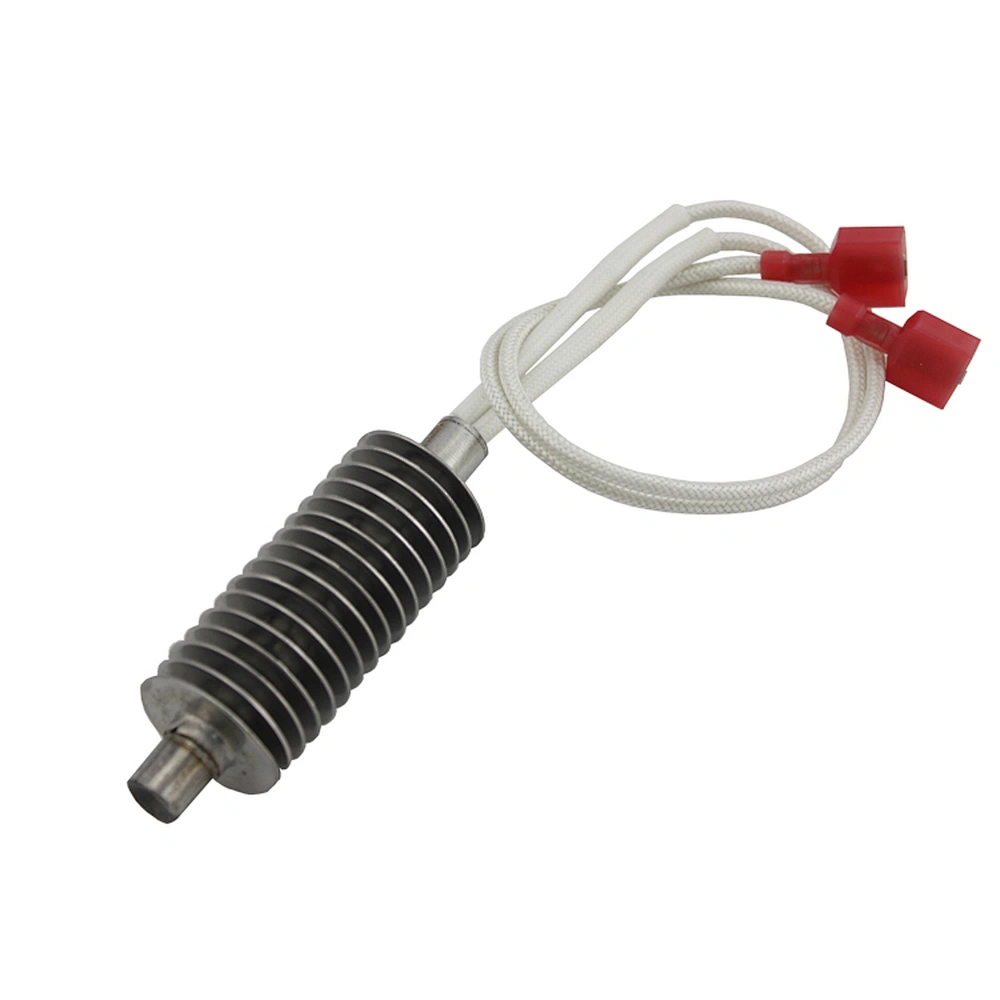

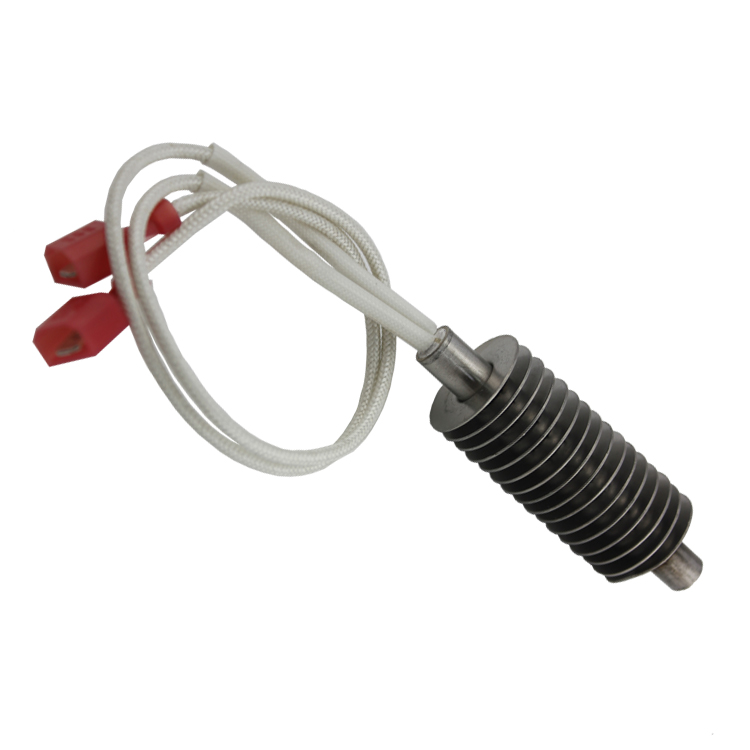

3/8"x 3 1/4"240v 300w Cartridge heater with fin electric finned heating tube igniter heater
The item is used for wood pellet grill&fireplace igniter, with high tempereture, short heating time, long service life, low leakage current and other performance.
Model:
Harman Accentra 336W 240V 15 Fin Igniter
| Resistance Heating Wire | NiCr 80/20 Wire |
| Size | 3/8"Diameter, 3 1/4"Length |
| Maximum Temperature | Instantly Heat 300℃In 10 Seconds, Max Temperature Is 870℃ |
| Resistance Tolerance | +10%, -5% |
| Length Tolerance | ±1 Mm |
| Diameter Tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation Resistance (Cold) | ≥ 500 MΩ |
| Maximum Leakage Current (Cold) | ≤ 0.5 MA |
| Resistance Heating Wire | NiCr 80/20 Wire |
Our Yuling factory made these seris pellet stove igniter for many years;we have many clients who sell this product on Amazon,such as CAPE CODE and so on.
If there is any other type we haven't show on our website,pls send your drawing or sample to us;
We can provide free samples to you for testing,you can choose purchase or not according the testing result...
• Leadwire Types
• End Seal Options
• Lead Options
• Mounting Options
• Built-In Thermocouple
• End Seal Options
• Lead Options
• Mounting Options
• Built-In Thermocouple
Application
Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills.It has a high efficiency (more than 90%) of ignition and very easy to install before operating.
•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner
•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner
