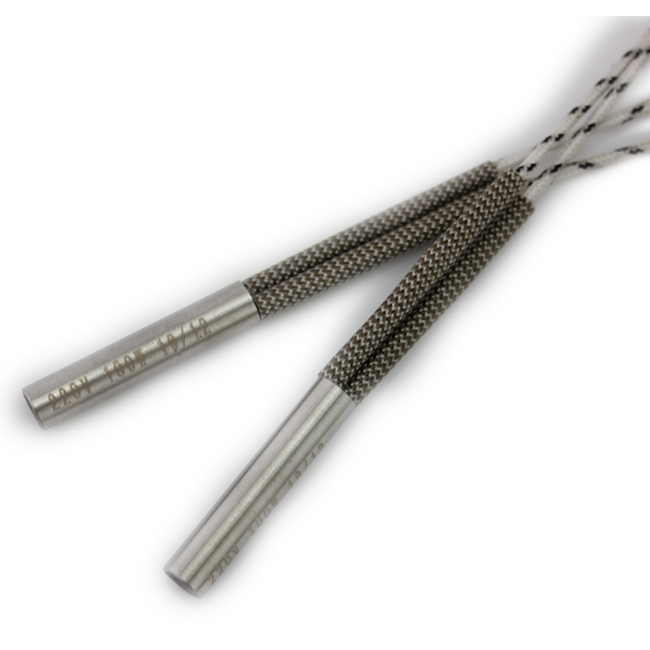

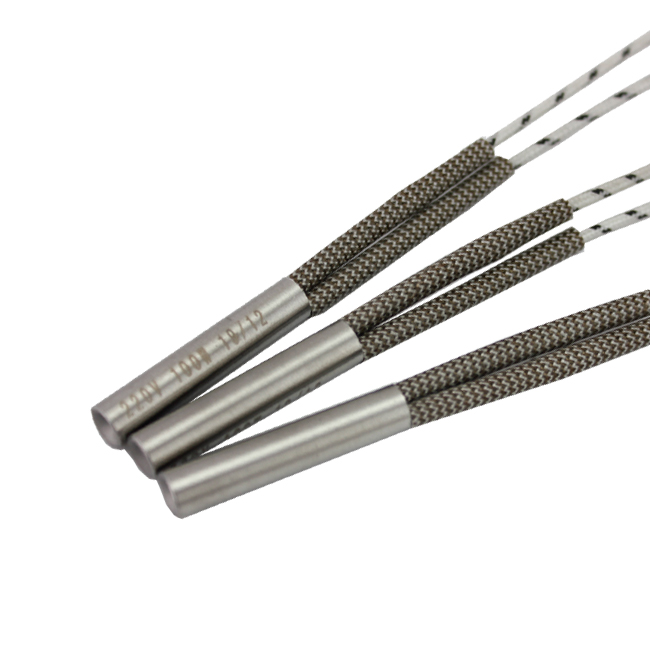

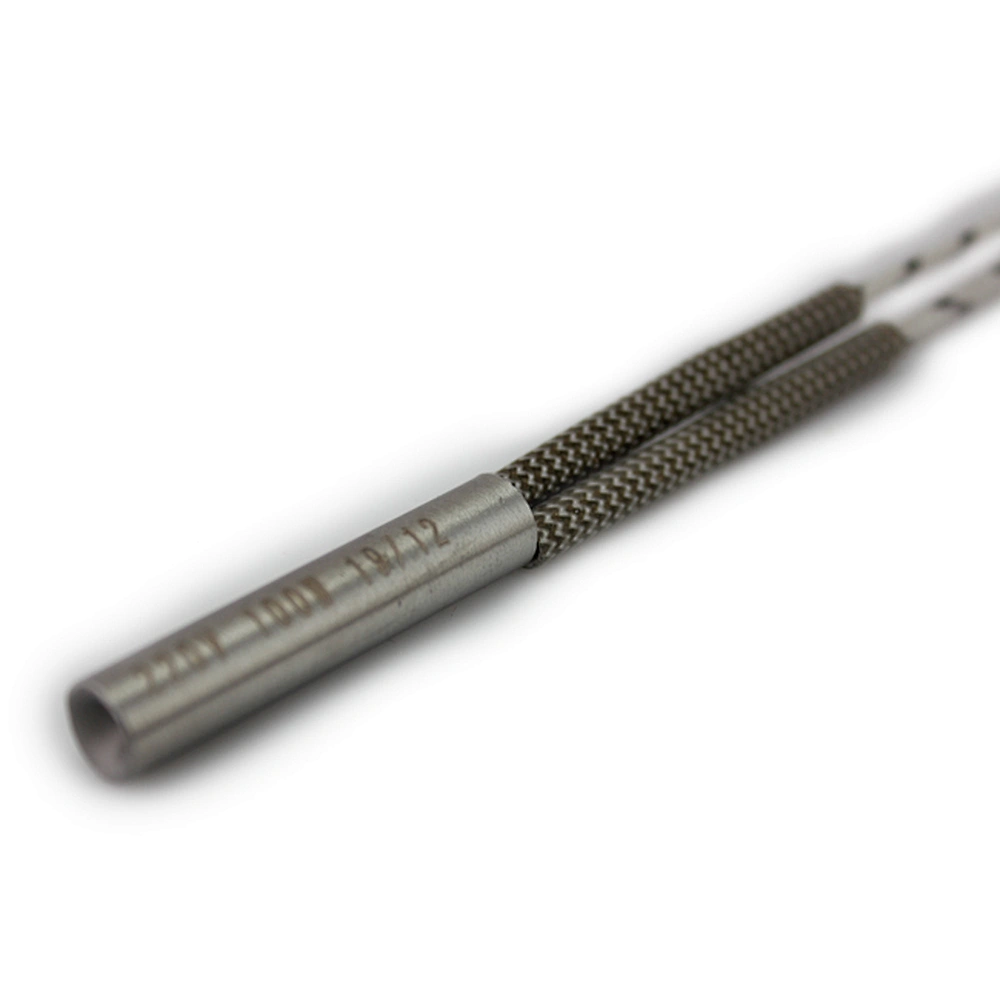

AC110V/220V/380V Stainless Steel Single Ended Heating Resistance Rod Cartridge Heater 12x100mm Tube Heating Element
price
US $1.00 - US $5.00 / pieces
AC110V/220V/380V
10 pieces
5000pieces / Month
Taizhou,Jiangsu,China
20Day
Quantity
Features

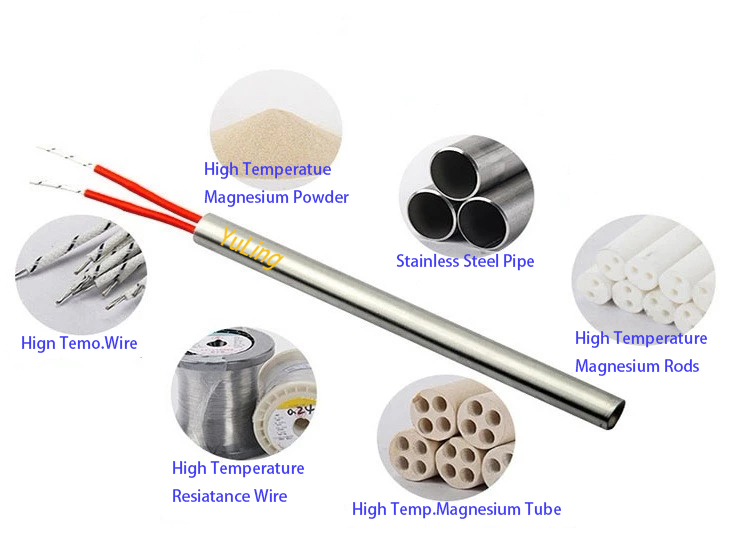

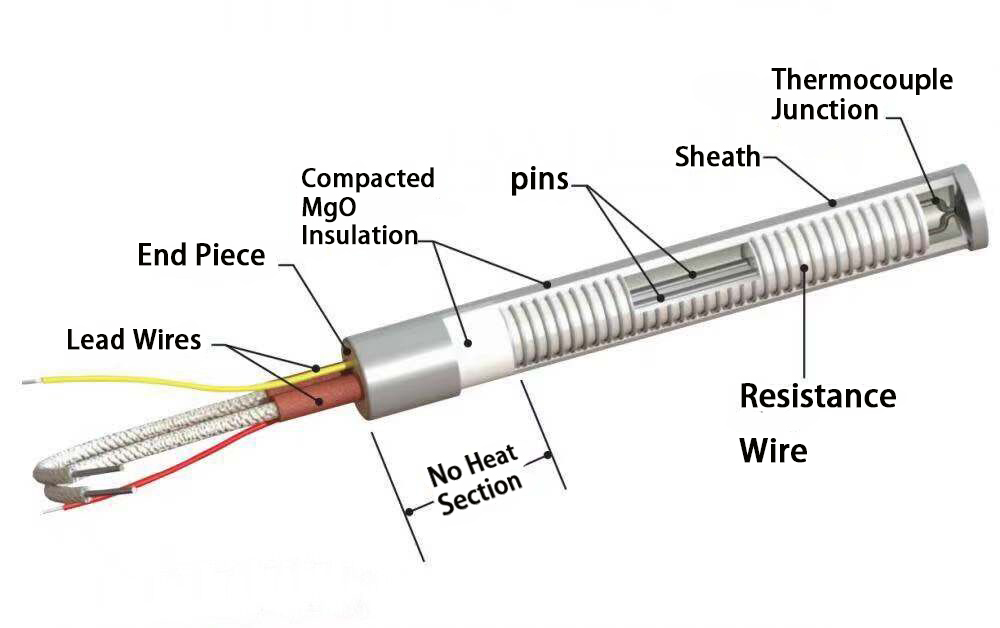

1. Tube diameter: Φ3mm-Φ25mm
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc
3. Insulation Material: High purity MgO Power
4. Resistance Wire element: Ni-Cr or FeCr
5. Lead Wire Connectiom Choice: External or Internal
6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: PTFE or Silicone)
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc
3. Insulation Material: High purity MgO Power
4. Resistance Wire element: Ni-Cr or FeCr
5. Lead Wire Connectiom Choice: External or Internal
6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: PTFE or Silicone)
| Resistance heating wire | NiCr 80/20 wire |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Thermocouple Location | type J / K / Ground wire |
