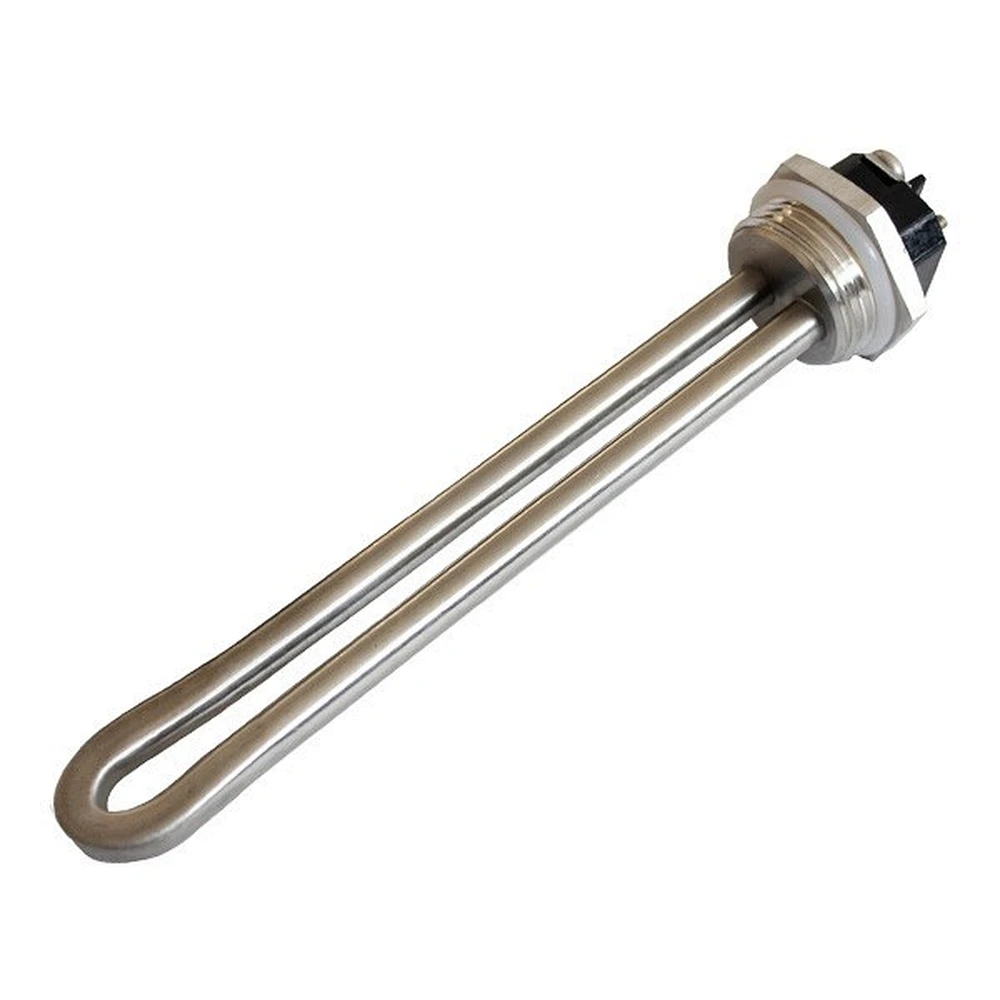

12V 600W 1 Inch NPT DC Electrical Flange Immersion Tubular Heating Element For Solar Water Heater
price
US $4.00 - US $6.00 / pieces
12V 600W
100 pieces
5000pieces / Month
Taizhou,Yuling,Jiangsu
20Day
Quantity
| Specification parameter | Detail | Remark |
| Sheath Material | SUS304 | Materials can be changed to be copper , sus321 ,sus316L ,incoloy804,incoloy800 as requested |
| Voltage/wattage | 12V 100W200W600W | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10% |
| Tube Diameter | 8.5mm | Tube diameter can be changed to 6.6mm,7mm,8.0mm,8.5mm,10mm or other as requested |
| Resistance Powder | Magnesium oxide | We can use other powder if requested |
| Resistance Wire | Ni80Cr20 | Ocr25Al5 or other material if requested |
| Faston Terminal | Nickel plated iron | Material of terminal housing could be stainless iron,stainless steel if required |
| Leads | Stainless steel | Materials of terminal piece could be stainless iron,stainless steel if required |
| Screw Thread | 1"or2" | Other thread can be made if required |
| Shape | as requirement | |
