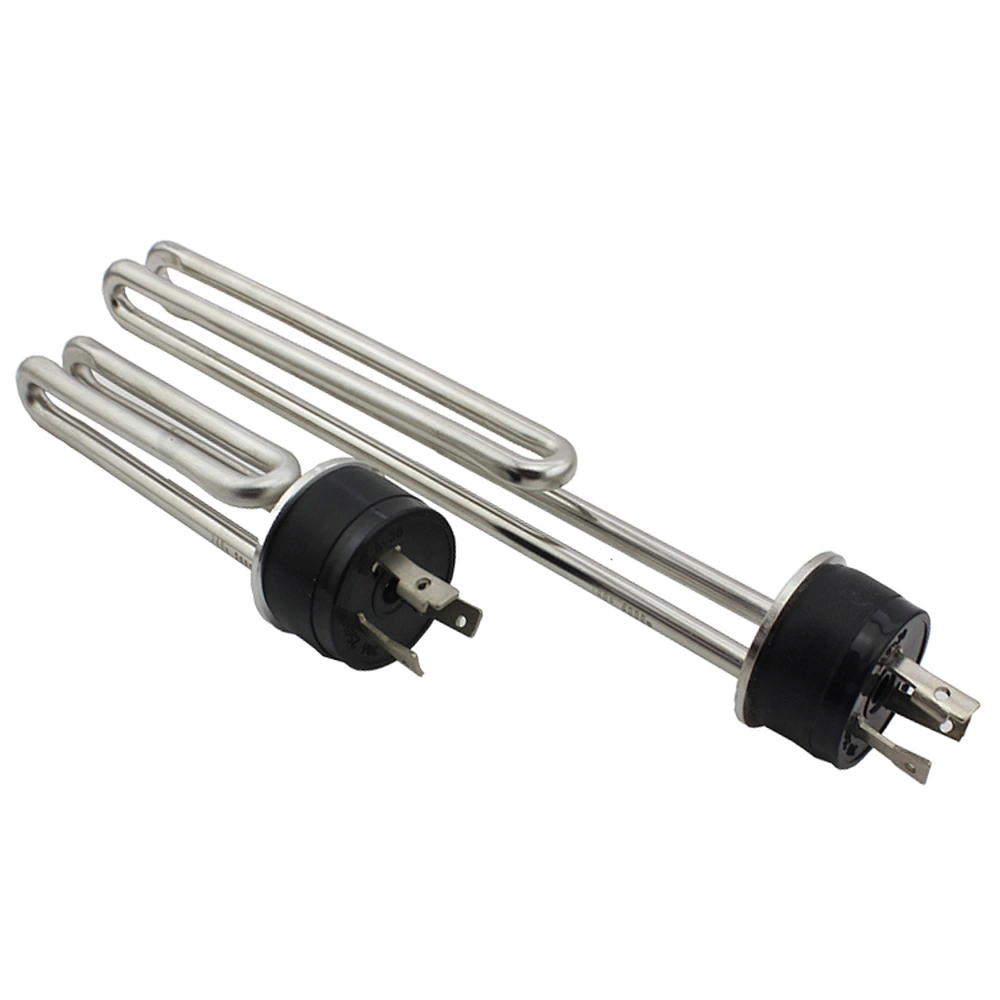

1.5" Tri-clamp 120V 1500W Immersion Water Heater Electric Brewing Heating Element
price
US $10.00 - US $15.00 / piece
YL-101
1 piece
5000piece / Month
Taizhou,Jiangsu,China
20Day
Quantity
| Specification parameter | Detail | Remark |
| Sheath Material | SUS304 | Materialscan be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested |
| Voltage/wattage | 120V/1500W | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10% |
| Tube Diameter | 8.5mm/0.33" | Tube diameter can be customized as required |
| Weight | 206g | |
| Screw thread | 1" | Other thread can be made if required |
| MgO | A | We can use other powder if requested |
| Resistance wire | Ni80Cr20 | Or OCr25Al5 |
| Plastic shell | Nylon | Temperature resistance 160℃ |
| Leads | Stainless steel | Materials of terminal piece could be stainless iron,stainless steel if required |
| Faston Terminal | Nickel plated iron | Material of terminal housing could be stainless iron,stainless steel if required |
| Insulation resistance | ≥1000MΩ(cold condition) | |
| Leak current | ≤0.5mA | |
| Density | 6.6W/CM2 | |
| Usage | It can be used direct with batteries, solar panels, hydroelectric generators, as a wind turbine dump diversion load. | |
| Warranty | 3-5 years | |
