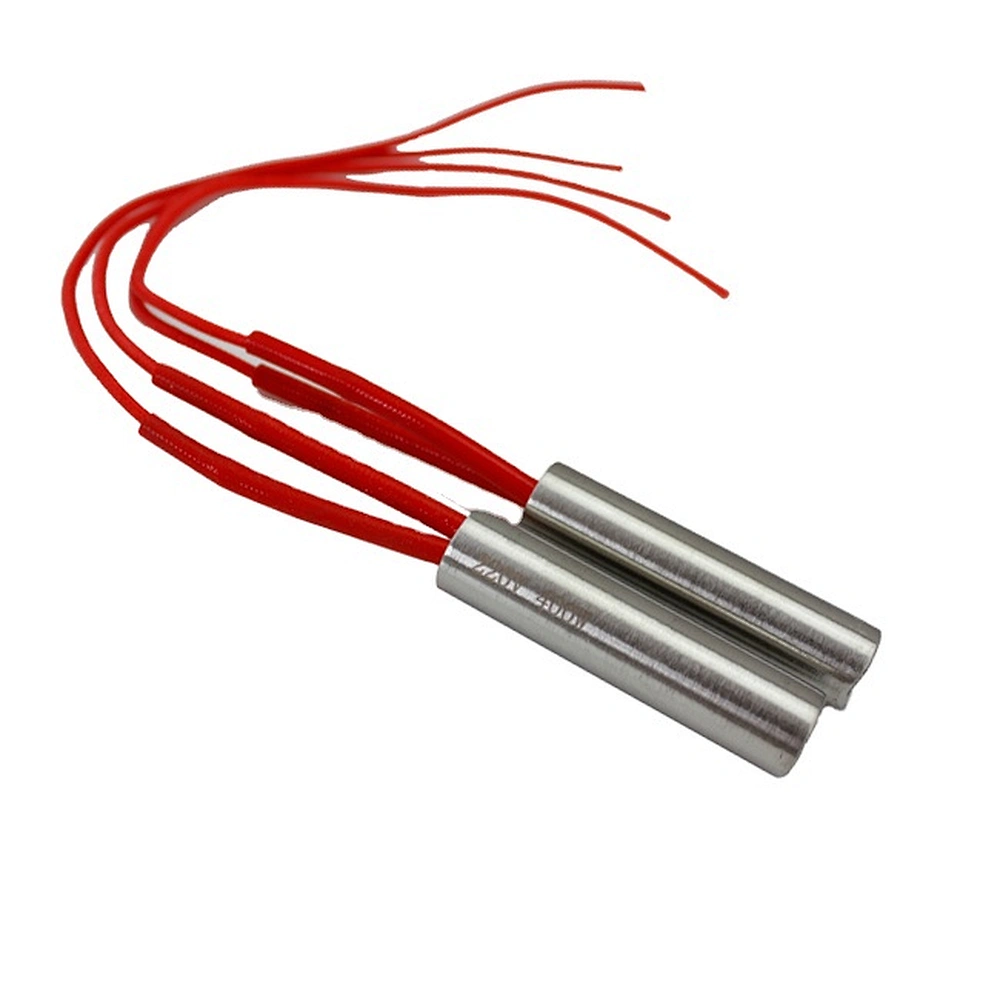

220V 100W Packing Machine Cartridge Heater Heating Rod
price
US $1.00 - US $5.00 / pieces
220V 100W
10 pieces
5000pieces / Month
Taizhou,Jiangsu,China
20Day
Quantity
220V 100W Packing Machine Cartridge Heater Heating Rod
A cartridge heater is a tube-shaped, industrial heating element that can be inserted into drilled holes. Cartridge heaters provide localized and precise heating and are commonly used in the heating process industry. Typically, cartridge heaters are used to heat a metal block from the inside and can be custom manufactured to a specific watt density based on the requirements of the application.
Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.

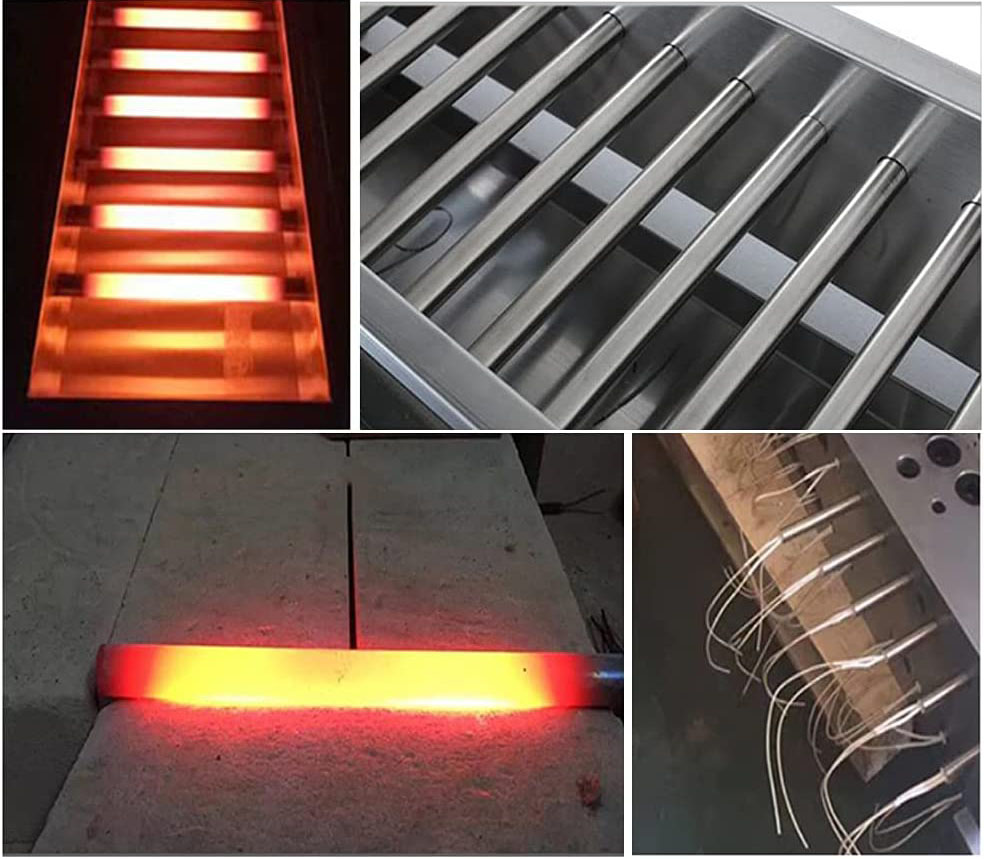

Cartridge heaters are most frequently used for heating dies, platens, molds, and other metal parts by insertion into drilled holes. They can also be used in liquid immersion applications. Below are some examples of specific applications:
* Heating gases and liquids
* Hot runner molds
* Hot stamping
* Laminating presses
* Medical equipment
* Semi-conductor
* Plastic molding
* Scientific equipment
Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
Cartridge Heater Product Features
1. Simple structure, high heating power
2. Easy and economical installation
2. Easy and economical installation
3. Designed and manufactured with good materials
4. Uniform temperature
5. Accurate dimensions, maximum heat transfer
6. Easy maintenance and replacement
7. CE & RoHS approved
4. Uniform temperature
5. Accurate dimensions, maximum heat transfer
6. Easy maintenance and replacement
7. CE & RoHS approved
Electric Cartridge Heater Customization Options
1. Built-in thermocouple
2. Voltage (phase ) & power & watt density
3. Non-heating part length

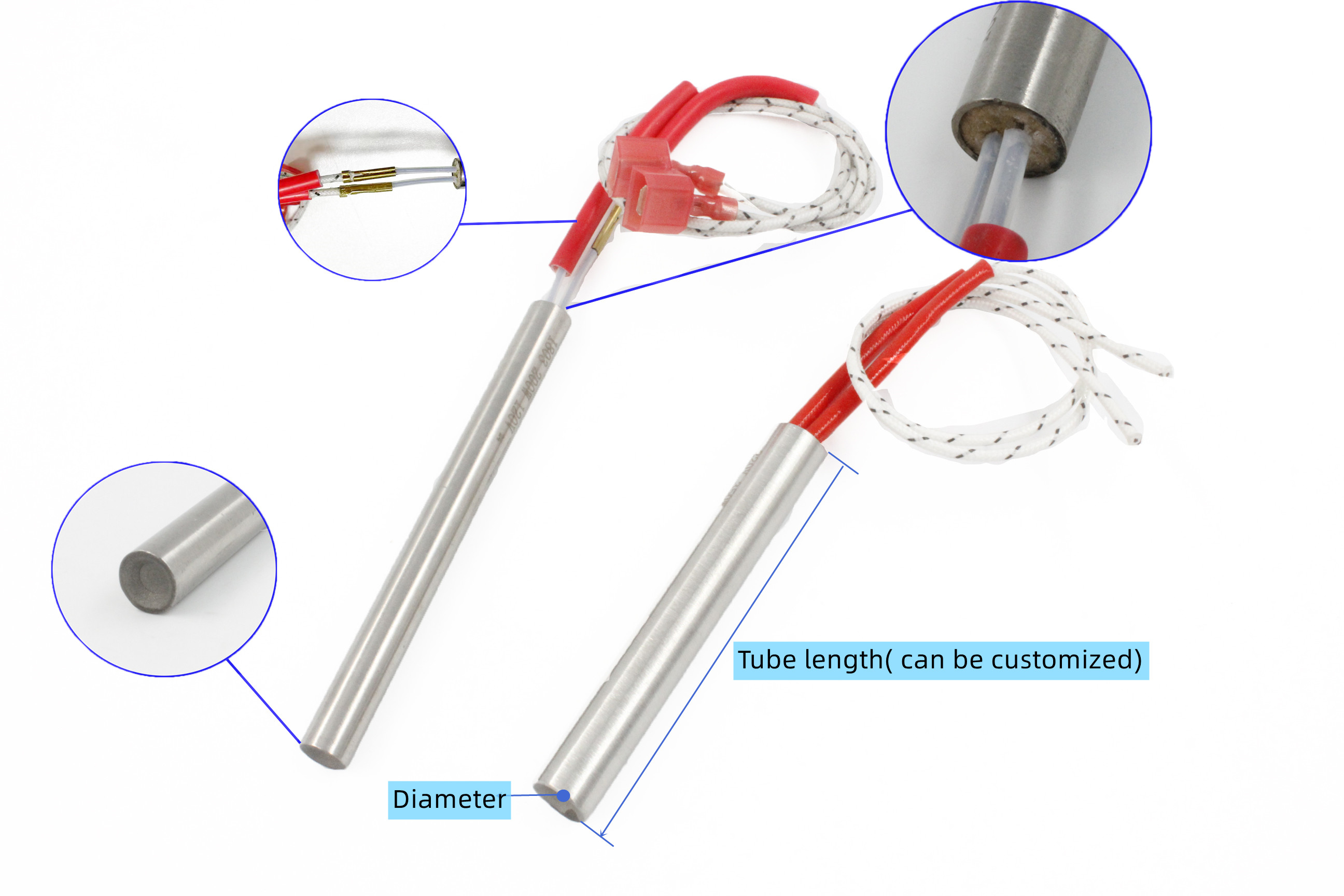

4. Tube diameter & length
5. Sheath material
6. Lead/ lead protection
7. Seal material
8. Installation - flange/ locating ring/ screw
9. Finned
10. Inner structure - e.g. custom distributed wattage
2. Voltage (phase ) & power & watt density
3. Non-heating part length
4. Tube diameter & length
5. Sheath material
6. Lead/ lead protection
7. Seal material
8. Installation - flange/ locating ring/ screw
9. Finned
10. Inner structure - e.g. custom distributed wattage
| Outer Sheath Material | Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840 |
| Resistance Heating Wire | Nichrome 8020 resistance wire |
| Wattage Tolerance | +5%, -10% |
| Resistance Tolerance | +10%, -5% |
| Voltage Available | 12 to 600 volts customied |
| Maxium Heating Temperature | 800 Degree Celsius |
| Length Tolerance | ±1mm |
| Diameter Tolerance | ±0.02mm |
| Standard Cold Size | 5-10mm |
| Insulation Resistance (cold) | ≥ 500 MΩ |
| Maxium Leakage Current (cold) | ≤0.5 mA |
| Lead Orientation | A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater. B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater |
Cartridge heaters are most frequently used for heating dies, platens, molds, and other metal parts by insertion into drilled holes. They can also be used in liquid immersion applications. Below are some examples of specific applications:
* Heating gases and liquids
* Hot runner molds
* Hot stamping
* Laminating presses
* Medical equipment
* Semi-conductor
* Plastic molding
* Scientific equipment
