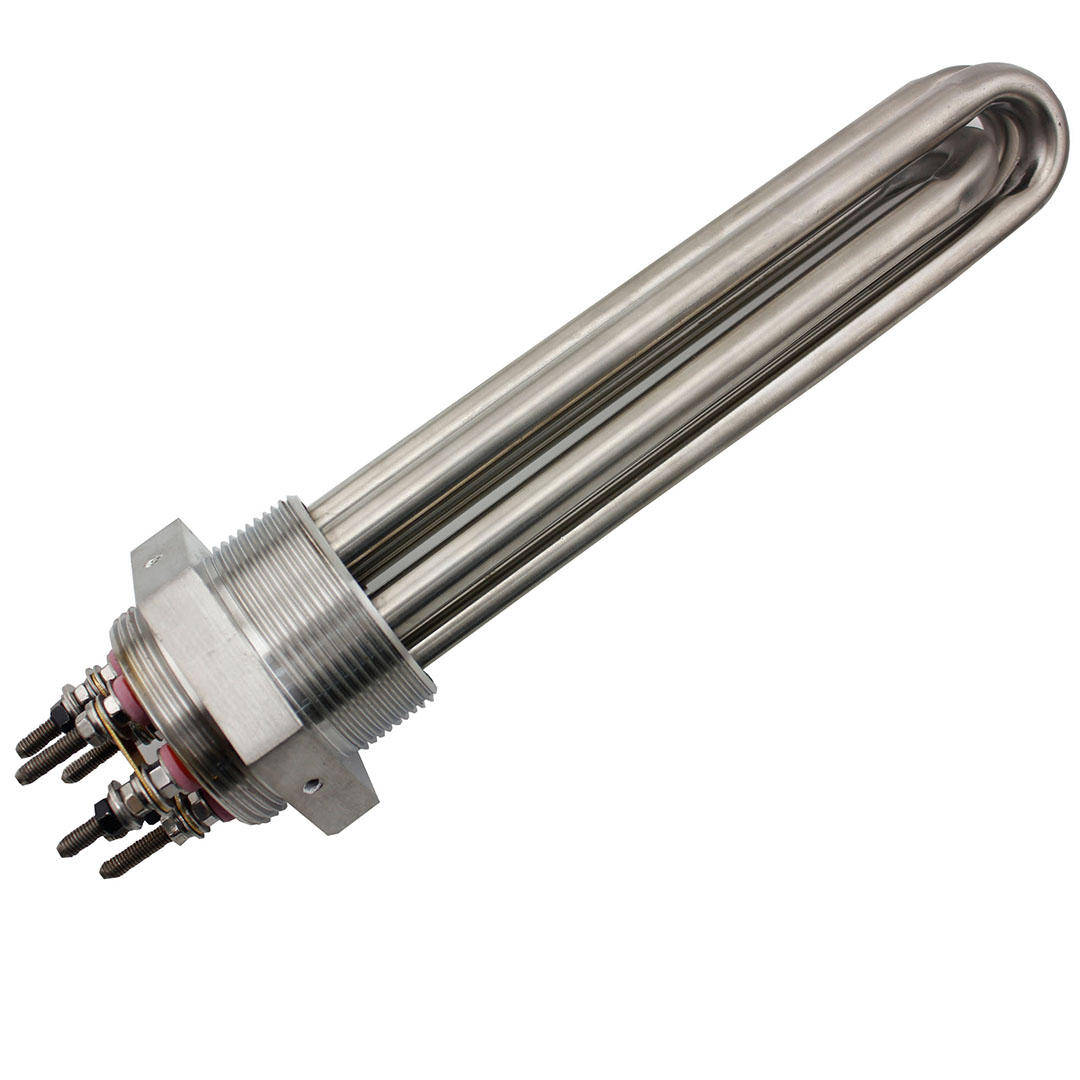

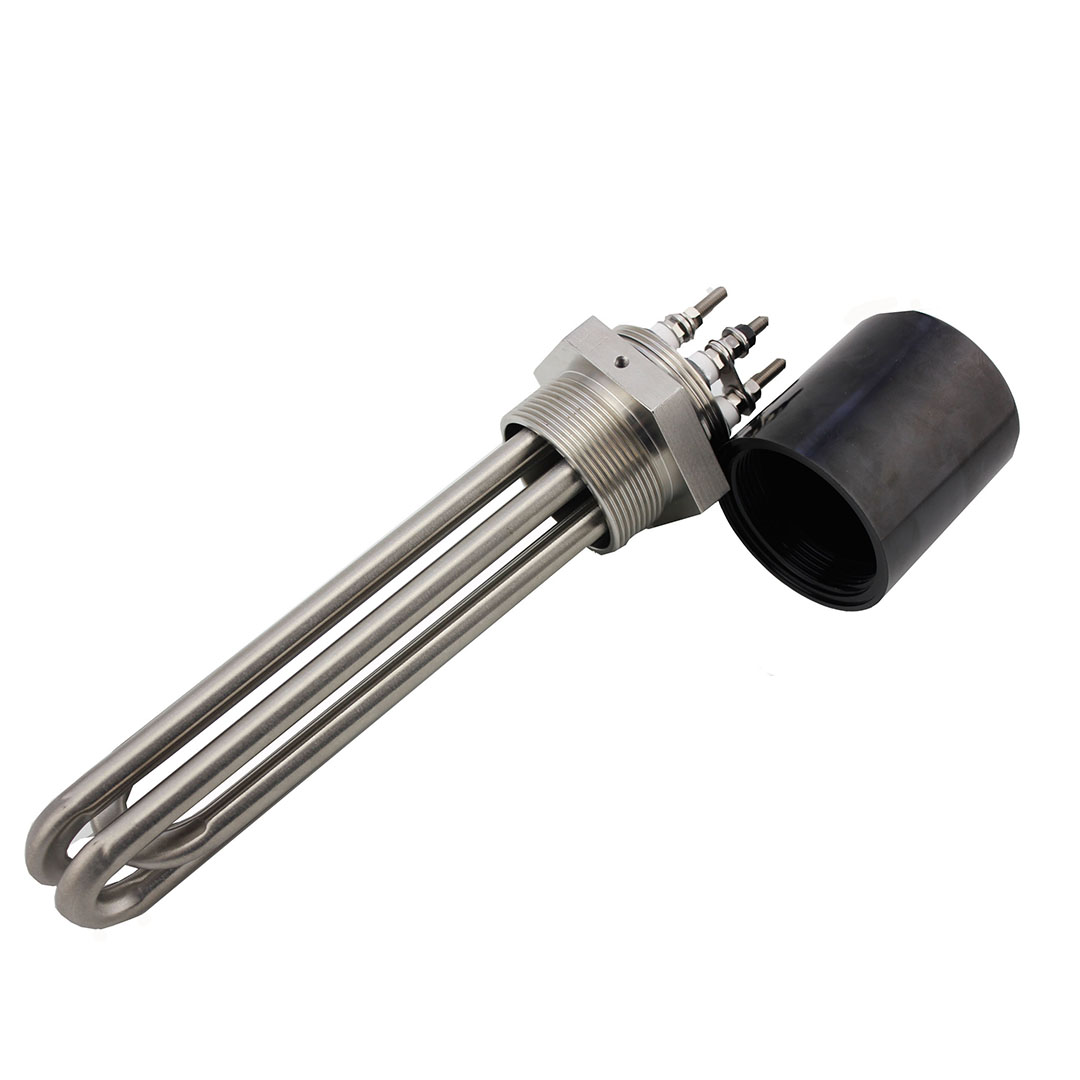

Dn25 Dn40 Dn50 1"Bsp Thread Water Tank Copper Flange Immersion Heating Element
price
US $70.00 - US $80.00 / pieces
Dn25 Dn40 Dn50 1"Bsp Thread
100 pieces
5000pieces / Month
Taizhou,Jiangsu,China
20Day
Quantity
This product is applicable to Standard Amearican water heater element replacement,Water preheating,Campers,Motoor homes,industrial machines and equipment,Runs off your car battery for portable hot water anywhere,Direct wind and solar applications and many ,many more uses where heat or diversion loads and needed.
| Specification parameter | Detail | Remark |
| Sheath Material | SUS304 | Materialscan be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested |
| Voltage | 220V/380V | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10% |
| Tube Diameter | 8.5mm/0.33" | Tube diameter can be customized as required |
| Power | 15KW | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10% |
| Screw thread | 1" | Other thread can be made if required |
| MgO | A | We can use other powder if requested |
| Resistance wire | Ni80Cr20 | Or OCr25Al5 |
| Plastic shell | Nylon | Temperature resistance 160℃ |
| Leads | Stainless steel | Materials of terminal piece could be stainless iron,stainless steel if required |
| Faston Terminal | Nickel plated iron | Material of terminal housing could be stainless iron,stainless steel if required |
| Insulation resistance | ≥1000MΩ(cold condition) | |
| Leak current | ≤0.5mA | |
| Density | 6.6W/CM2 | |
| Usage | electric water heater, brewery | |
| Warranty | 3-5 years | |
