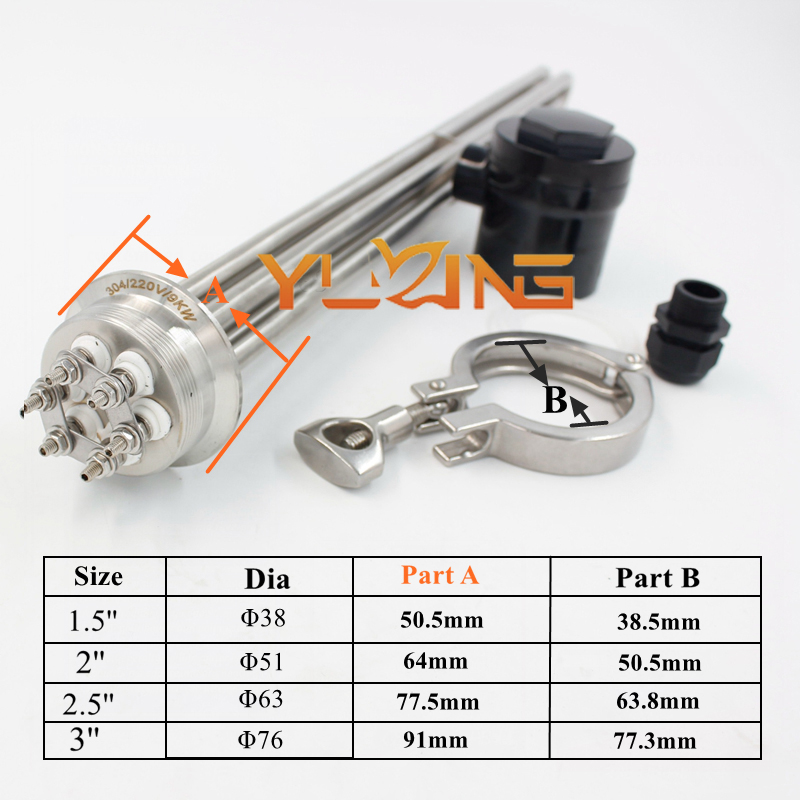

Submersible flange electric heating tube

2022-11-12

Flange electric heaters are also known as flange electric heating tubes, flange heaters, flange electric heaters, screw flange electric heaters, flange heaters, insert electric heaters, immersion electric heaters, and so on.It is an important part of gas heaters (such as air heaters, nitrogen heaters, and hydrogen heaters) and liquid heaters (such as electric heating, heat conduction oil furnaces, industrial pure water heaters, electric steam boilers, and heavy oil heaters). The U-shaped tubular heating element is adopted, which is assembled on the flange cover according to the design specifications for heating different media and according to the power configuration requirements. It is inserted into the material to be heated. The large amount of heat emitted by the heating element when working is transmitted to the heated medium to make the medium temperature rise so as to meet the required process requirements. Flange heaters are mainly used in petroleum, chemical, food, machinery, and other industries for all kinds of storage tanks, containers, fuel tank material insulation, and heating.

Product Features

1, the use of high-quality SUS304 stainless steel seamless pipe, imported from Europe and America, and magnesium oxide powder.

2. The maximum operating temperature can reach 850 degrees, and the PID control system adjusts the output power of the electric heater and the heating element of the resistive load based on the temperature sensor signal to achieve temperature control.

3. The heater's efficiency is above 95%.

4. long-lasting, with a service life of up to ten years; an interlock protection device that immediately cuts off the heating power supply in the event of an overheated or low-level condition to avoid burning heating elements.

5, shape, and power can be customized.

6. The connection can be flanged or threaded.

Immersed flange type electric heating tube is the oil, chemical and other industries in the tank, container flow or static fluid heating equipment, the equipment is divided into electric heating part and electrical wiring part. The heating part of the electric heater is immersed in the heating hostage, and the electrical part is outside the tank or container.

The immersion-flange electric heating tube is mainly used for heating the liquid in contact. The electric heating part is inserted into the tank or container, and the medium is heated. All the heat energy generated by the heating part is transmitted to the medium at 100% efficiency, and the thermal efficiency is extremely high. In addition, the electrical connection, which is part of the flameproof structure, can operate safely in an explosive gas environment.

Equipment Performance:

First, high heating efficiency means almost no loss.

Second. High safety factor, the junction box is made of flameproof structure, and multiple temperature measuring points are set inside the product, which can be used for electrical inspection to check whether the heater is overheated and overheated, and can be timely controlled to protect the electric heating element.

Three: long service life; insulation performance advantages
